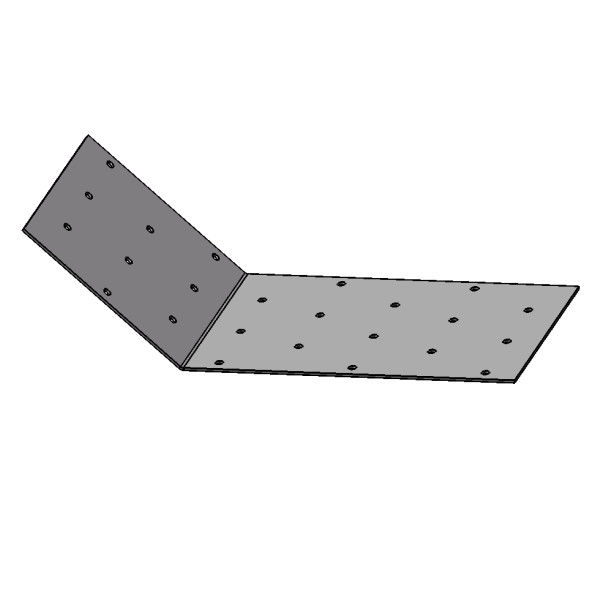

Creeper Connector For Fixing Jack Truss To Hip Truss

Name: Creeper Connector For Fixing Jack Truss To Hip Truss
Brand: Cangzhou Futong Precision Manufacturing Co.,Ltd
SKU: CC200
Price: 0.5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Surealong

Certification: Rohs, CE

Model Number: CC200

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 0.5

Packaging Details: Carton

Delivery Time: 20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100000pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Hip Truss Creeper Connector, Creeper Connector For Fixing Jack Truss, Jack Truss Creeper Connector


Specification:	Creeper Connector For Fixing Jack Truss To Hip Truss	Customized:	Customization Is Welcomed
Material:	G300-Z275	Design:	Modern Design
Type:	Connector	Strength:	High Strength
Surface:	Galvanized, Powder Coated	Longevity:	Long-lasting And Durable
Weather Resistance:	Can Withstand Different Weather Conditions	Key Words:	Creeper Connector
Installation Method:	Easy To Install With Screws Or Nails	Easy Installation:	Simple And Easy To Install
Application:	Construction And Woodworking

Specification:	Creeper Connector For Fixing Jack Truss To Hip Truss
Customized:	Customization Is Welcomed
Material:	G300-Z275
Design:	Modern Design
Type:	Connector
Strength:	High Strength
Surface:	Galvanized, Powder Coated
Longevity:	Long-lasting And Durable
Weather Resistance:	Can Withstand Different Weather Conditions
Key Words:	Creeper Connector
Installation Method:	Easy To Install With Screws Or Nails
Easy Installation:	Simple And Easy To Install
Application:	Construction And Woodworking

Description

Creeper Connector For Fixing Jack Truss To Hip Truss

Product Name	Creeper Connector For Fixing Jack Truss To Hip Truss
Material	galvanized steel
Color	Silver
Standard	ISO
Grade	SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9
Used	construction, industry, structural

APPLICATION:

CreeperConnectors are available in two forms, CC200

for 0 to 12.5° pitch chords, which is suitable for both left

and right hand configurations, and CC200L and CC200R

for 15 to 25° pitch chords, which are left and right hand

configurations respectively.

USES

• CreeperConnectors have

been designed to connect

jack trusses to hip trusses.

ADVANTAGES

• CreeperConnectors are

metal plates pre-punched to

accommodate nails and bent

to suit roof pitches up to 25°.

• CreeperConnectors may also

be used to connect half trusses

or cut-off trusses to boomerang

girder trusses.

Creeper Connectors can be used to fix both single and double

mitred jack/cut-off trusses to hip/boomerang girder trusses.

Always fix the shorter leg of a CreeperConnector to the

hip/boomerang chord and the longer leg to the jack/cut-off chord.

CreeperConnectors are to be fixed using 30 x 2.8mm

MiTek galvanized reinforced head nails as specified for each

type of fixing, in addition to 3/75mm flathead nails fixed directly

through the chords.

NOTES:

1. A Type A Connection has a CreeperConnector fastened to

the truss top chords and 3/75mm nails through the truss

bottom chords as shown below.

2. A Type B Connection has CreeperConnectors fastened to both

truss top and bottom chords as shown below.

3. Beneath each CreeperConnector are 3/75mm framing nails

not shown in drawings for clarity.
