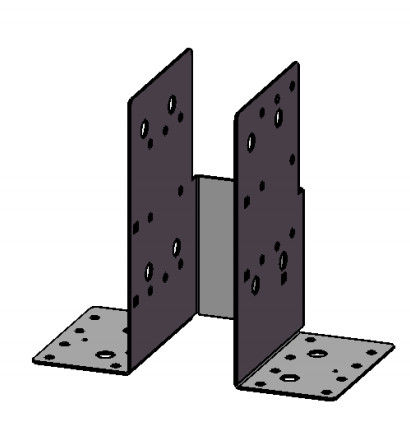

Multi Girder Bracket For Fixing Standard Truss To Girder Truss

Name: Multi Girder Bracket For Fixing Standard Truss To Girder Truss
Brand: Cangzhou Futong Precision Manufacturing Co.,Ltd
SKU: GB475
Price: 6.5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Surealong

Certification: Rohs, CE

Model Number: GB475

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: 6.5

Packaging Details: Carton

Delivery Time: 20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100000pcs per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Multi Girder Bracket, Fixing Multi Girder Bracket, Standard Truss Multi Girder Bracket


Specification:	Girder Bracket	Customized:	Customization Is Welcomed
Material:	G300-Z275	Design:	Modern Design
Type:	Connector	Strength:	High Strength
Surface:	Galvanized, Powder Coated	Longevity:	Long-lasting And Durable
Weather Resistance:	Can Withstand Different Weather Conditions	Key Words:	Girder Bracket
Installation Method:	Easy To Install With Screws Or Nails	Easy Installation:	Simple And Easy To Install
Application:	Construction And Woodworking

Specification:	Girder Bracket
Customized:	Customization Is Welcomed
Material:	G300-Z275
Design:	Modern Design
Type:	Connector
Strength:	High Strength
Surface:	Galvanized, Powder Coated
Longevity:	Long-lasting And Durable
Weather Resistance:	Can Withstand Different Weather Conditions
Key Words:	Girder Bracket
Installation Method:	Easy To Install With Screws Or Nails
Easy Installation:	Simple And Easy To Install
Application:	Construction And Woodworking

Description

Multi Girder Bracket For Fixing Standard Truss To Girder Truss

Easy Fixing Steel Girder Brackets for Timber Roof Trusses or Rafters and Timber Beams

Product Name	Easy Fixing Steel Girder Brackets for Timber Roof Trusses or Rafters and Timber Beams
Material	galvanized steel
Color	Silver
Standard	ISO
Grade	SUS201, SUS304, SUS316, A2-70, A2-80, A4-80, 4.8 6.8 8.8 10.9 12.9
Used	construction, industry, structural

APPLICATION: The Girder Bracket can be installed with either M12 bolts or MiTek anti-split self-drilling screws for speedy installation. It is also able to accommodate scissor trusses with a bottom chord pitch up to 20 degrees.

SCREW APPLICATION

Mark on girder bottom chord (minimum 90mm for screw fix and minimum 120mm for bolt fix) location of all Girder Brackets and Hangers. Position Multi Girder Bracket against bottom of girder bottom chord and apply Green Tip #12 screws. Green Tip #12 screws must be applied until the underside of the head is against the Girder Bracket. Do Not overtighten the screws or use power drills that are too powerful for the job as damage may occur to timber, screw or bracket.

recommends the use of roofing screw drivers to fix screws. Green Tip #12 screws self-drill through 1mm plates. It is recommended that the Green Tip Screws are applied in one action.

NOTES: Roof provides diagrams and details of the Girder Bracket type and positioning. For Hardwood bottom chords, pre-drilling holes is required. Supported truss to be hard into girder truss. All screws or bolts to be inserted prior to roof truss being loaded to avoid rotation.
