G300 Z275 Galvanized Steel Bracing Strap Tensioners Include Tensioning Bridge

Product Details

Place of Origin: China

Brand Name: Cangzhoufutong

Model Number: bracing strap tensioners

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: USD0.5-3.0

Packaging Details: Carton

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 10000 pcs/day

Get Best Price
Contact Now
Specifications
Highlight:

Galvanized Steel Bracing Strap Tensioners

,

Z275 Galvanized Steel Bracing Strap

,

Tensioning Bridge Steel Bracing Strap

Material:
G300 Z275 Galvanised Steel
Use:
For Strap Brace
Key Words:
Bracing Strap Tensioners,hoop Iron Tensioners
Material:
G300 Z275 Galvanised Steel
Use:
For Strap Brace
Key Words:
Bracing Strap Tensioners,hoop Iron Tensioners
Description

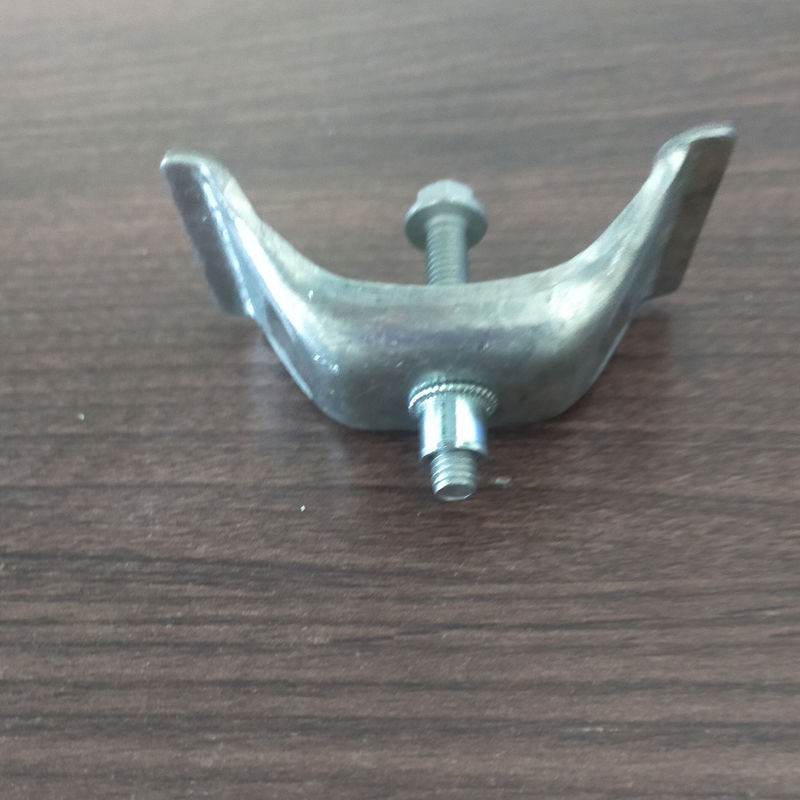

G300 Z275 Galvanized Steel Bracing Strap Tensioners Include Tensioning Bridge

Galvanized steel bracing strap tensioners

G300 Z275 Galvanized Steel Bracing Strap Tensioners Include Tensioning Bridge 0

The WBT Wall Brace Tensioner is an easy‑to‑use wall strap‑brace tensioner that takes the slack out of strap bracing, saving time over other methods. With the ability to pull as much as 20mm of slack out of a single strap, the WBT can play an important role in reducing deflection in braced wall panels. It resists tension loads only and should be used in pairs (one for each strap when in X‑brace configuration).





Material
Carbon Steel 3.0mm thick

Finish
Z275 Galvanised

Features & Benefits
Compatible with Cangzhoufutong's CS Coiled Straps
Can be used on bracing up to 32mm wide
Includes tensioning bridge, bolt and nut
Installation
Place WBT near centre of diagonal wall brace
Install bolt through strap and WBT with nut facing towards the wall cavity
Tightening the nut requires 10mm hex head deep socket setter. Tighten until the slack is taken out of the strap.
G300 Z275 Galvanized Steel Bracing Strap Tensioners Include Tensioning Bridge 1
