Galvanized steel impaling clips for acoustic panels

Name: Galvanized steel impaling clips for acoustic panels
Brand: Cangzhou Futong Precision Manufacturing Co.,Ltd
SKU: 1-1/2″ x 2″
Price: 0.10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Cangzhoufutong

Certification: CE

Model Number: 1-1/2″ x 2″

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: USD0.1-USD2.0 per pcs

Packaging Details: Carton

Delivery Time: 5-8 work days

Payment Terms: T/T

Supply Ability: 10000 pcs/day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          g300 acoustic impaling clips, z275 acoustic impaling clips, g300 impaling clips for acoustic panels


Material:	G300 Z275 Galvanised Steel	Size:	1-1/2″ X 2″
Key Words:	Impaling Clip,acoustic Impaling Clips

Material:	G300 Z275 Galvanised Steel
Size:	1-1/2″ X 2″
Key Words:	Impaling Clip,acoustic Impaling Clips

Description

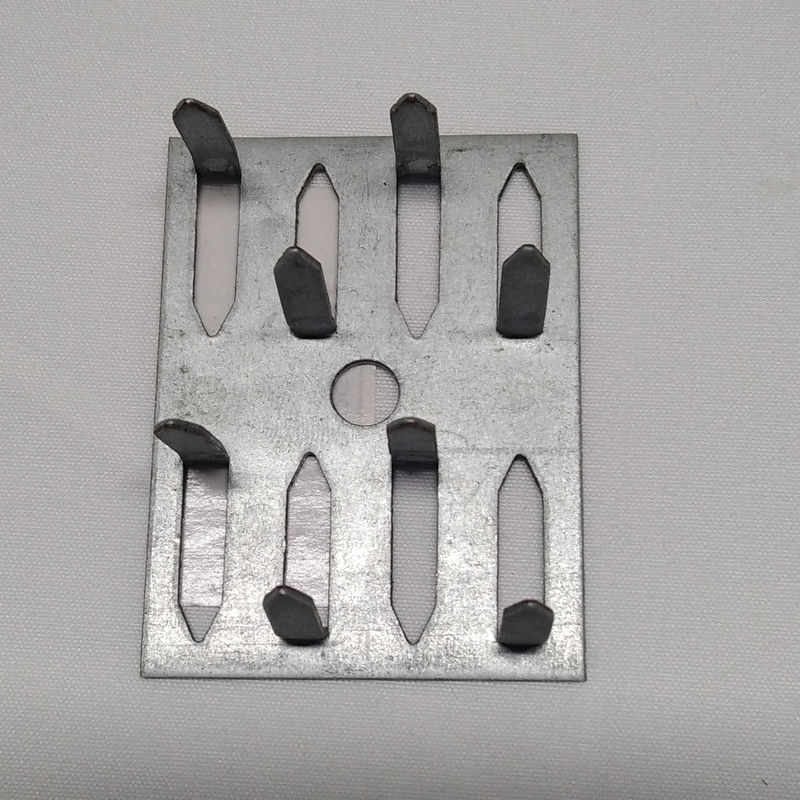

Galvanized steel impaling clips for acoustic panels

Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls. Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place. The dimensions of the clips are 2-1/8" x 1-1/2". The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner. For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.

TECHNICAL INFORMATION:

Size: 1-1/2″ x 2″

Depth: 5/8″

Impaling Clip 8 prong with center hole Size: 1-1/2 in. x 2-1/8 in.

Composition: Extruded metal

Intended use: To be used in conjunction with construction adhesive when installing fiberglass acoustical panels.

Packing: Box of 100

INSTRUCTIONS:

1. Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.

2. Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended. If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.

3. For permanent placement, use adhesive on the wall to stick the back of the panel to the wall.

Impaling clips for acoustic panels
Material	G300 Z275 Galvanised Steel
Size	1-1/2″ x 2″
Key words	impaling clips for acoustic panels

The impaling clips will be packed in the cartons.

Galvanized steel impaling clips for acoustic panels 2
